2009 Kubota RTV900 Special Edition
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Celebrate Kubota's 35th year in the United States with the RTV900 Special Edition.

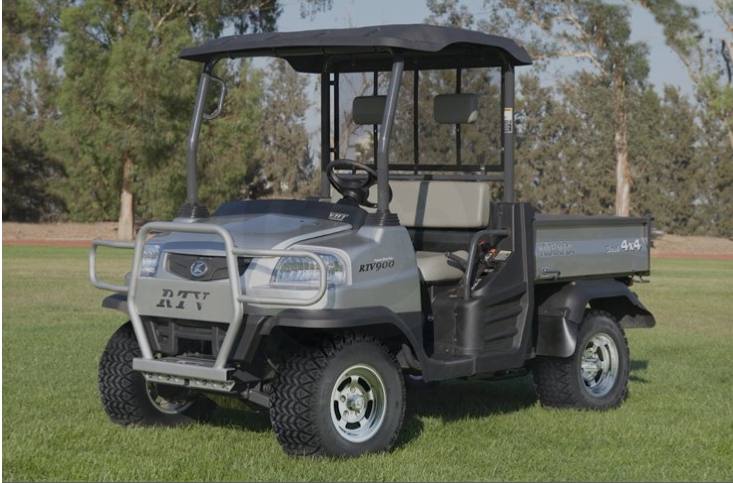

Decked out in metallic silver paint and aluminum alloy wheels, the RTV900 Special Edition is Kubota's way of celebrating our 35th year in America. This special model builds from the popular Worksite model and adds an impressive list of high-value standard features, usually offered only as optional equipment. So join in the celebration by being one of the fortunate few to enjoy the great looks, exclusive package features, and heavy duty work force capabilities of the RTV900 Special Edition.

    Engine
    • Engine make: KUBOTA D902-E2-UV
    • Engine Type: 3-cylinders, 4-cycle, diesel, OHV
    • Displacement: 54.8 ci, (898 cc)
    • Horsepower: 21.6 hp (16.1 kW) @ 3200 RPM
    • Fuel tank capacity: 7.4 gal. (28 l)
    Drive Train and Transmission
    • Transmission: Variable hydro transmission (VHT)
    • Max. Traveling speed: 25 mph (40 km/h)
    • Drive system: 4WD w/2WD selection
    • Wheels: 4
    • Differential lock: Standard; Foot pedal operated with mechanical holder
    • Gear selection: Hi-Med-Lo range forward, neutral, reverse
    • Brakes (Front/Rear): Wet-disc brakes
    • Parking brake: Rear wheel, hand lever
    • Steering: Hydrostatic power
    • Suspension (Front/Rear): Independent, Mac-Pherson strut-type/Independent; DeDion axle w/leaf springs and shock absorbers
    Dimensions & Weight
    • Length: 119.8 in. (3030 mm)
    • Width: 59.3 in. (1520 mm)
    • Height overall: 79.3 in. (2015 mm)
    • Front tread centers: 45.3 in. (1150 mm)
    • Rear tread centers: 46.5 in. (1180 mm)
    • Wheelbase: 77.4 in. (1965 mm)
    • Ground clearance (front/rear axel): 8.3 in. (210 mm)/7.5 in. (190 mm)
    • Turning diameter: 25.6 ft. (7.8 m)
    • Max. rolling weight (Towing capacity): 1300 lbs. (590 kg)
    • Payload capacity: 1653 lbs. (750 kg)
    • Weight: 1918 lbs. (870 kg)
    Cargo Bed
    • Width x Length x Depth: 52 in. (1320 mm) X 46.7 in. (1180 mm) X 11.4 in. (290 mm)
    • Volume: 16.0 cu. ft. (0.455 m3)
    • Bed height (unloaded): 31.5 in. (800 mm)
    • Cargo bed load: 1102 lbs. (500 kg)
    Tires
    • Tire Size (Front): 25x10-12 ATV, 6PLY or 25x10-12 HDWS, 6PLY
    • Tire Size (Rear): 25x10-12 ATV, 6PLY or 25x10-12 HDWS, 6PLY
    Other Features
    • Front guard: Standard
    • Sound level (operator ear): 87 db
    • Body color: Metalic Silver
    • Speedometer: Standard
    • Hydraulic bed lift: Standard
    • Headrest: Standard (2pcs)
    • Spray on bedliner: Standard

    Specifications

    Engine
    Engine Type 3-cylinders, 4-cycle, diesel, OHV
    Displacement 54.8 ci, (898 cc)
    Cooling liquid-cooled
    Chassis
    Front Suspension Independent, Mac-Pherson strut-type
    Front Brakes Wet-disc brakes
    Front Tire 25x10-12 ATV, 6PLY or 25x10-12 HDWS, 6PLY
    Rear Suspension Independent; DeDion axle w/leaf springs and shock absorbers
    Rear Brakes Wet-disc brakes
    Rear Tire 25x10-12 ATV, 6PLY or 25x10-12 HDWS, 6PLY
    Dimensions
    Dry Weight 1918 lbs. (870 kg)
    Fuel Capacity 7.4 gal. (28 l)
    Wheelbase 77.4 in. (1965 mm)
    Ground Clearance Front/Rear axel: 8.3 in. (210 mm)/7.5 in. (190 mm)
    Box Capacity 1102 lbs. (500 kg)
    Towing Capacity 1300 lbs. (590 kg)
    Transmission
    Transmission Variable hydro transmission (VHT)
    Drive System 4WD w/2WD selection
    General
    Speedometer Standard
    Colors Orange

    Compare Models

    		 Print








    Year 2009
    Manufacturer Kubota
    Model RTV900 Special Edition
    Style 4x4
    Chassis
    Front Suspension Independent, Mac-Pherson strut-type
    Front Brakes Wet-disc brakes
    Front Tire 25x10-12 ATV, 6PLY or 25x10-12 HDWS, 6PLY
    Rear Suspension Independent; DeDion axle w/leaf springs and shock absorbers
    Rear Brakes Wet-disc brakes
    Rear Tire 25x10-12 ATV, 6PLY or 25x10-12 HDWS, 6PLY
    Dimensions
    Dry Weight 1918 lbs. (870 kg)
    Front Travel
    Fuel Capacity 7.4 gal. (28 l)
    Rear Travel
    Wheelbase 77.4 in. (1965 mm)
    Ground Clearance Front/Rear axel: 8.3 in. (210 mm)/7.5 in. (190 mm)
    Box Capacity 1102 lbs. (500 kg)
    Rack Capacity
    Towing Capacity 1300 lbs. (590 kg)
    Engine
    Engine Type 3-cylinders, 4-cycle, diesel, OHV
    Displacement 54.8 ci, (898 cc)
    Bore and Stroke
    Cooling liquid-cooled
    Compression Ratio
    Fuel System
    Ignition
    General
    Speedometer Standard
    Tachometer
    Odometer
    Colors Orange
    Warranty
    Transmission
    Transmission Variable hydro transmission (VHT)
    Drive System 4WD w/2WD selection
