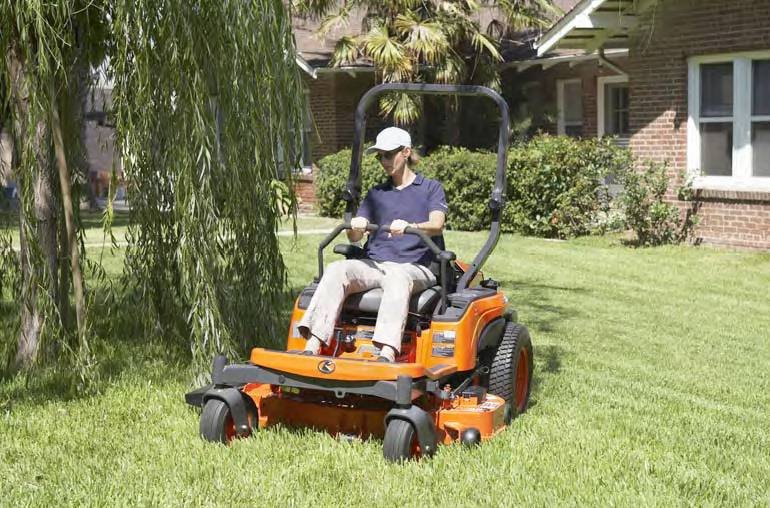

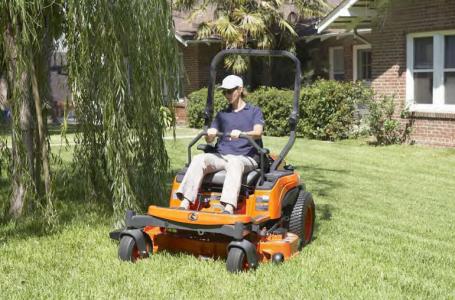

2009 Kubota ZG327-60 Zero-Turn Mower


Request a Quote Financing Calculator Request a Brochure Financing Form

Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

For maneuverability, nothing beats our lineup of zero-turn mowers. Designed to stand up to the rigors of daily use, they combine a high-output gas or diesel engine with a host of innovative features enabling you to handle anything that crosses your path.

Indicator Panel:
The ergonomically angled control panel enables easy viewing and keeps most major controls and indicators within close reach. It includes fuel and oil gauges, cutting height adjustment dial, locking PTO lever and more.


Hands-free Parking Brake/Deck Lift Pedals:
With the ZG327, you only need to depress a single pedal to park the mower. And, thanks to the 2-pedal hydraulic deck lift system, you can easily raise and lower the deck to keep mowing in spite of obstacles. All three pedals are placed directly in front of you on the angled footboard for easy access.


Semi-pneumatic (Flat-free) Front Tires:
An industry first for this size, the 15 in. flat-free caster tires were created to absorb impacts with the rigidity of their structural thickness. This feature greatly reduces the worry of downtime from flat tires, so you can spend more time working.


Pro Commercial Mower Deck:
The ZG327 features a heavy-duty, 60 in. Pro Commercial mower deck for superior cutting performance. With a deck depth of 6.5 inches- the deepest in the industry-it features a unique baffling system that improves airflow to discharge grass clippings, and an anti-overflow system, which reduces grass spillage. The deck utilizes a flexible- but-sturdy discharge cover, which helps prevent damage to shrubs and landscaping. It's the ideal mower deck-for any mowing job.


Optional Mulching System:
The ZG327's deep mower deck is perfect for mulching, even on thick grass. A Kubota-designed flow plate optimizes airflow and facilitates repeated cutting, and the specially designed mulching blades provide an extra-fine cut to leave a beautiful finish.


High-back Deluxe Suspension Seat:
Maximize your comfort with the ZG327's cushioned, reclining, high-back deluxe suspension seat. The ergonomic, extra-wide adjustable seat features 3-position lumbar support, adjustable armrests, seatbelt and much more, to reduce fatigue and make your job easy.


Operator Platform:
This spacious operator platform is designed to make you comfortable while working. It has wide speed control levers and an obstacle-free floorboard to allow greater legroom, and features a wide step to simplify mounting/dismounting.


Reliable Hydrostatic Transmission:
The large-capacity HST brings performance to a new level. Regulated by an efficient gear hydraulic charge pump, the HST delivers smooth control, quiet operation and a quick response. Plus, the durable copper metal cylinder block ensures transmission durability and performance.


Integrated Radiator Screen:
A large steel-mesh screen is integrated into the hood. This boosts airflow to keep the engine running cool and efficiently, and protects vital parts.


Easy Maintenance:
With the ZG327, maintenance is hassle-free. The seat panel lifts up for quick access to the HST. Routine servicing (adding ad, etc.) is easy-just open the hood. The maintenance hatch on the operator platform makes upper mower access a snap. For a complete view, all three can be opened at the same time. A 5 in, dual-element air cleaner with vacuum sensor informs you when service is required. Kubota's optional tilt-up lift feature is also available for routine maintenance underneath the mower.


Underside Maintenance:
With the simple stroke of a lever, a sub-chassis hatch opens to grant you easy access to the air filter and removes stay clippings.


Mower Access:
The ZG327 features a special maintenance hatch, with a built-in storage pocket, on the full-flat operator platform. It allows easy access to the upper mower, mower belt, gearbox case, and universal joint parts.


Durable Kubota Gasoline Engine:
The new, V-Twin Kubota gasoline engine delivers durability and productivity like nothing else. Available in 22HP or 27HP, this reliable, air-cooled engine offers outstanding performance and quiet operation. Specifically designed for mowing, it features Kubota's clean-flow structure, which eliminates the likelyhood of grass clippings clogging the wide cooling air passage. And Kubota makes maintenance simple-the engine cover can be removed so you con perform routine maintenance without taking the engine out of the machine. Plus a unique carburetor drain cock allows you to drain out residual gasoline, to keep fuel lines clean and making the transportation or long-term storage of the mower safer.


Panel:
With the user-friendly instrument panel, Kubota keeps essential controls and indicators close for easy access and viewing. They're all here-warning indicator, fuel gauge and more.

    Engine
    • Engine model: Kubota KGZ77O-E2-M1
    • Engine type: Gasoline, air-cooled V-Twin with heavy-duty canister air fIlter
    • Maximum horsepower (Gross): 27 HP @ 3600 rpm
    • Total displacement: 46.87 ci. (768 cc)
    • Starting system: Key switch
    • Engine stop system: Key stop
    • Fuel tank capacity: 12.9 gal. (49 l)
    • Battery: 12 Volts;U/L-9; 300 CCA @ 0 deg. F; 30 min. RC.
    • Alternator capacity: 13.4 Amps @ 12 Volts
    • Hour meter: Standard
    • Fuel gauge: Electric
    Dimensions & Weight
    • Overall length: 87.8 in. (2230 mm)
    • Overall width (W/mower): 75.2 in. (2230 mm)
    • Overall width (W/o mower): 57.2 in. (1460)
    • Overall height (W/ROPS upright): 75.4 in. (1915 mm)
    • Overall height (W/ROPS folded): 61.2 in. (1555 mm)
    • Wheel base: 55.5 in. (1410 mm)
    • Tread (front): 38.4 in. (975 mm)
    • Tread (rear): 45.3 in. (1150 mm)
    • Weight (w/ mower or fuel): 1473 lbs. (668 kg)
    Drive Train and Transmission
    • Transmission system: 2 HST w/ Gear reduction
    • Speed control: 2-hand lever
    • Travel speed (Forward): 0-10.6 mph (0-17 km/h)
    • Travel speed (Reverse): 0-5.3 mph (0-8.5 km/h)
    • Brake Type: Wet multi disks, foot operated
    • PTO type: Shaft drive
    • Clutch type: Hydraulic independent PTO clutch with wet multi disks Wet single disk
    Tire Size
    • Tire size (Front): 15x 6.0-6 Semi-Pneumatic
    • Tire size (Rear): 26x 12.0-12
    Mower Specifications
    • Mower model: RCK60P-327Z
    • Mower lift system: Hydraulic
    • Mower deck type: Pro commercial—Fabricated deck
    • Deck depth: 6 in. (152 mm)
    • Belt type: Multi-belt
    • Deck steel thickness: 0.17 in. (4.2 mm)/0.18 in. (4.6 mm)
    • Anti-Scalp roller: Rigid
    • Cutting width of mower: 60 in.
    • Number of blades: 3
    • Cutting Height: 1-5 in. in 1/4 in. increments
    • Blade tip speed (Max.): 18100 FPM
    Other Optional Implements
    • Grass Catcher
    • Mulching Kit
    • Maintenance Lift
    • Canopy (Deluxe Fiberglass)
    • Work Light Kit

    Specifications

    Engine
    Engine Manufacturer Kubota KGZ77O-E2-M1
    Horse Power 27 HP @ 3600 rpm
    Engine Type Gasoline; Air-cooled V-Twin with heavy-duty canister air fIlter
    Displacement 46.87 ci. (768 cc)
    General
    Transmission 2-HST w/ Gear reduction
    Wheel Size Front: 15x 6.0-6 Semi-Pneumatic; Rear: 26x 12.0-12
    Fuel Capacity 12.9 gal. (49 l)
    Deck
    Deck Size 60 in.
    Discharge Type Right Side

    Compare Models

    Print








    Year 2009
    Manufacturer Kubota
    Model ZG327-60 Zero-Turn Mower
    Style Riding
    Deck
    Deck Size 60 in.
    Discharge Type Right Side
    Engine
    Engine Manufacturer Kubota KGZ77O-E2-M1
    Horse Power 27 HP @ 3600 rpm
    Engine Type Gasoline; Air-cooled V-Twin with heavy-duty canister air fIlter
    Displacement 46.87 ci. (768 cc)
    General
    Transmission 2-HST w/ Gear reduction
    Wheel Size Front: 15x 6.0-6 Semi-Pneumatic; Rear: 26x 12.0-12
    Fuel Capacity 12.9 gal. (49 l)
