$13,999.00

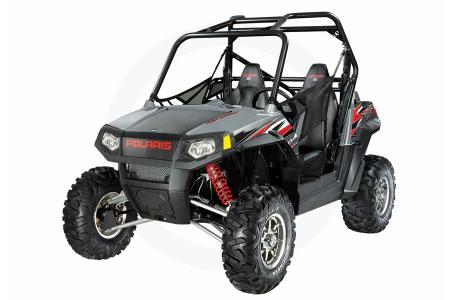

2009 Polaris Industries Ranger RZR S
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

60" Razor Sharp Performance for Desert or Dunes. Razor Sharp Sport Perfromance. It dominates the "wide open" places with a 63 mph top speed and Polaris long travel suspension for the ultimate performance.

  • 800 H.O. Twin EFI Engine: Industry-leading big bore 800 Twin EFI engine gives ou 63 mph (101.4 km/h) top speed
  • On-Demand True AWD: Senses when the rear wheels slip to engage both front wheels with full torque, maximizing traction with true 4-wheel drive
  • Lowest Center of gravity: With the engine positioned behind the seat, the center-of-gravity is lowest in class for razor sharp handling and performance
  • Independent Rear Suspension: Rolled independent rear suspension with an anti-sway bar and 12 in. (30 cm) or travel for a smooth ride
  • Ground Clearance: 12 in. (30.5 cm) of ground clearance keeps you off boulders and other trail obstacles
  • Adjustable seats & More: Adjustable seats, tilt steering and an adjustable passenger grab bar and a 3-point Safety Harness
  • Premium Long Travel Suspension: IRS with FOX Podium® X Reservoir Shocks, compression and preload adjustable
  • Rear Anti-Sway Bar: Rear anti-Sway bar helps keep the chassis flat when cornering
  • Chrome-Moly Front A-Arms: Chrome-Moly Front A-Arms are designed for precision and strength
  • Premium Tires & Rims: Maxxis® Bighorn 26 in. tires on 12 in. aluminum rims add high-performance look and ride
Engine
  • Displacement: 760 cc
  • Cooling Type: Liquid
  • Engine Type: Twin Cylinder
  • Top Speed: 63 mph (101.4 km/h)
  • Lubrication: Wet Sump
  • Oil Capacity: 2 qt. (1.9 l)
  • Carburetion: Electronic Fuel Injection
  • Fuel Capacity: 7.25 gal. (27.4 l)
  • Coolant Capacity: 4.8 qt. (4.5 l)
  • Alternator: 500 Watts
Drivetrain
  • Transmission: Automatic PVT
  • Gear Range: In-Line P-R-N-L-R
  • Drive System: 4 Wheel Shaft Drive
Suspension
  • Front Details: Double A-Arm with Antisway Bar
  • Rear Details: Rolled Independent with Antisway Bar
  • Front Suspension: 12 in. (30 cm) Fox Podium (Comp Adjust / Res.) Double A-Arm
  • Rear Suspension: 12 in. (30 cm) Fox Podium (Comp Adjust / Res.) Rolled Independent w/Anti-sway Bar
  • Front Tires: 26X9-12
  • Rear Tires: 26X12-12
Dimensions
  • Wheelbase: 77 in. (196 cm)
  • Turning Radius: 149.5 in. (380 cm)
  • Dry Weight: 1000 lbs. (454 kg)
  • Ground Clearance: 12.5 in. (32 cm)
  • Length: 106 in. (269 cm)
  • Width: 60.5 in. (154 cm)
  • Height: 70.5 in. (179 cm)
  • Brakes: 4 Wheel Hydraulic Disk
Load Capacity
  • Box Dimension: 42 X 22 in. (107 X 56 cm)
  • Box Capacity: 300 lbs. (136 kg)
  • Payload Capacity: 740 lbs. (336 kg)
  • Hitch Towing Capacity: 1500 lbs. (681 kg)
  • Cargo System: Lock and Ride
  • Seating: 2
  • Skid Plate: Full

Specifications

Engine
Engine Type 4-stroke twin-cylinder
Displacement 760 cc H.O.
Cooling Liquid-cooled
Fuel System Electronic Fuel Injection (EFI)
Chassis
Front Suspension Double A-Arm
Front Brakes 4-wheel hydraulic
Front Tire 26 x 9-12
Rear Suspension Rolled independent with antisway bar
Rear Brakes 4-wheel hydraulic
Rear Tire 26 x 12-12
Dimensions
Dry Weight 1,000 lbs. (454 kg)
Front Travel 12 in. (30 cm) Fox Podium® (comp adjust/res.)
Fuel Capacity 7.25 gal. (1.9 l)
Rear Travel 12 in. (30 cm) Fox Podium® (comp adjust/res.)
Wheelbase 77 in. (196 cm)
Ground Clearance 12.5 in. (32 cm)
Box Capacity 300 lbs. (136 kg)
Towing Capacity Hitch Tow Capacity: 1,500 lbs.(681 kg)
Transmission
Transmission Automatic PVT
Drive System 4-wheel shaft drive
General
Speedometer Standard: Multi-function
Tachometer Standard
Odometer Standard
Colors Silver

Compare Models

 Print








Year 2009
Manufacturer Polaris Industries
Model Ranger RZR S
Style Side x Side
MSRP* $13,999.00
Chassis
Front Suspension Double A-Arm
Front Brakes 4-wheel hydraulic
Front Tire 26 x 9-12
Rear Suspension Rolled independent with antisway bar
Rear Brakes 4-wheel hydraulic
Rear Tire 26 x 12-12
Dimensions
Dry Weight 1,000 lbs. (454 kg)
Front Travel 12 in. (30 cm) Fox Podium® (comp adjust/res.)
Fuel Capacity 7.25 gal. (1.9 l)
Rear Travel 12 in. (30 cm) Fox Podium® (comp adjust/res.)
Wheelbase 77 in. (196 cm)
Ground Clearance 12.5 in. (32 cm)
Box Capacity 300 lbs. (136 kg)
Rack Capacity
Towing Capacity Hitch Tow Capacity: 1,500 lbs.(681 kg)
Engine
Engine Type 4-stroke twin-cylinder
Displacement 760 cc H.O.
Bore and Stroke
Cooling Liquid-cooled
Compression Ratio
Fuel System Electronic Fuel Injection (EFI)
Ignition
General
Speedometer Standard: Multi-function
Tachometer Standard
Odometer Standard
Colors Silver
Warranty
Transmission
Transmission Automatic PVT
Drive System 4-wheel shaft drive
